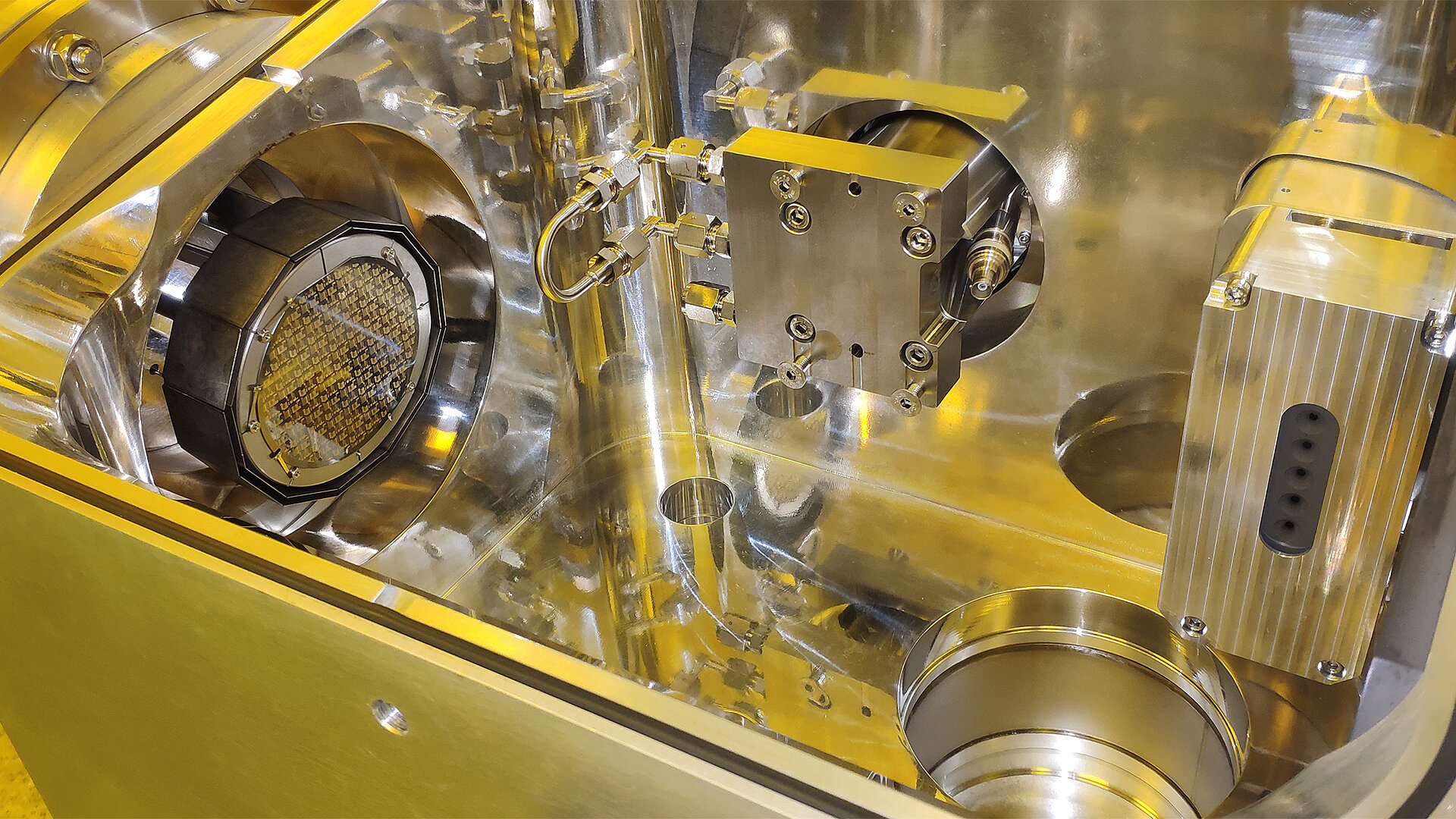

离子注入束线维护后的束流电流复核

技术产品精密感知与测量半导体

在束线清洁、部件更换或离子光学调整后,以固定测量位置的电流和积分电荷记录复核恢复状态,为重新调束和校准提供依据。

离子注入束线维护后的束流电流复核
离子注入束线维护后的束流电流复核

应用场景

束线维护后,即使离子源参数恢复到原设定,目标端电流仍可能受到传输损失、机械位置、束流几何或测量链变化的影响。只核对电源设定与设备能否启动,难以判断是否回到既定参考状态。应用需要保留维护前基准,并在相同束能、荷态、束斑及仪表条件下重复测量,区分设备变化与测量方法变化。

技术原理

可采用 D.I.S Germany CF63 水冷可伸缩法拉第杯(产品编号 931-S7-09-00015)建立维护前后的共同测量点。电动机构将杯体定位到约定位置,在相同束能、荷态、束斑和仪表条件下记录 I(t),再对规定时间区间积分得到电荷 Q。因为源端设定相同不一定意味着下游传输相同,所以复核同时记录杯体位置、抑制电压与冷却状态,并与维护前基准比较。积分电荷用于束流复核。晶圆剂量与均匀性仍需结合有效面积、扫描几何和设备校准流程判断。

客户价值

这里的价值在于把可重复定位的杯体与维护前后对照方法配套使用。固定测量位置和条件后,电流曲线与积分电荷可帮助区分传输变化、定位偏差和测量链变化,因此维护后的排查有共同基准。拓思把产品接口、参考条件、采样方法与放行输入一并梳理,使部件能够服务于维护复核和记录归档。测完退出束路,便于继续设备调试。复核结果衔接原有验收流程,不替代剂量校准。

常见问题 · 3 个问题

为什么维护前后应使用相同测量条件?

束能、荷态、束斑、杯体位置、抑制电压和电流计量程都会影响比较。先固定这些条件,再分析读数变化,才更容易区分设备漂移和测量方法变化。

有了积分电荷,是否就能直接得到晶圆剂量?

不能直接等同。换算需要已知粒子荷态、有效照射面积和束流覆盖情况;扫描束还应结合扫描时间及几何。杯体数据应作为剂量校准链中的一个输入。

可否一直插入杯体同时进行晶圆加工?

若杯体截获了送往晶圆的束流,就会遮挡加工。通常在调试或校准时插入,正式加工时退出;旁路或特殊布置须另行验证。
