离子束电流测量与水冷法拉第杯调束

技术产品精密感知与测量半导体

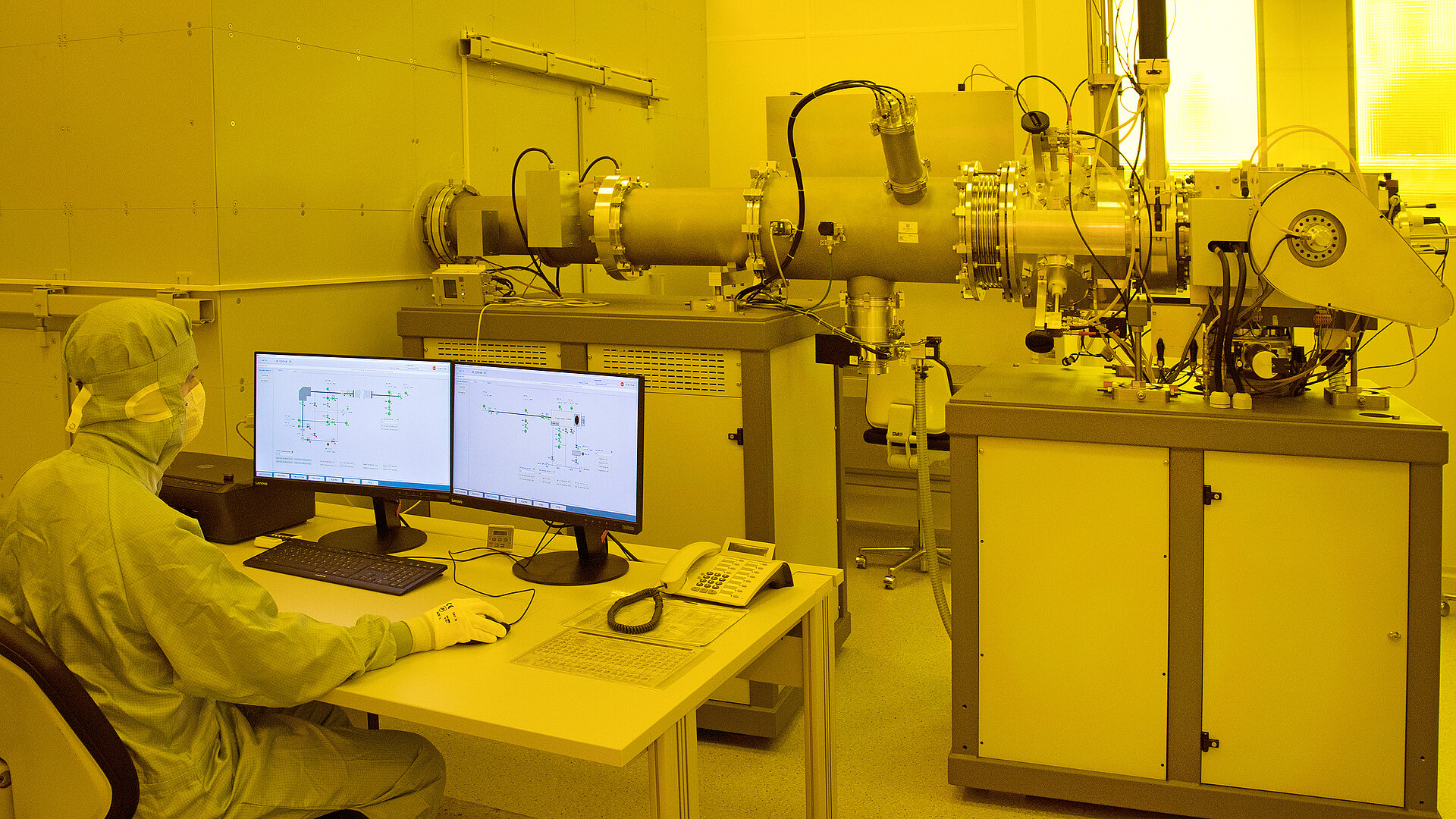

在离子注入和离子束设备调试中,通过可伸缩水冷法拉第杯测量指定位置的束流电流。测量结束后退出杯体,为正常工作束路让出通道。

离子束电流测量与水冷法拉第杯调束
离子束电流测量与水冷法拉第杯调束

应用场景

离子注入设备在调束、传输状态检查或重新建立工艺条件时,需要知道束线下游实际接收到的电荷电流。离子源电源的设定值不能替代目标位置的测量。束斑大小、安装位置及束流是否完整进入杯口,也会影响读数。应用需要一个可重复插入、测量后能够退出的参考点,并同时处理截获束流产生的热负荷。

技术原理

本方案以 D.I.S Germany 的 CF63 水冷可伸缩法拉第杯(产品编号 931-S7-09-00015,250 mm 电动行程)为选型起点。束流进入杯口后由收集极接收,电荷经绝缘通道送至腔外电流计。抑制极减少二次电子逸出造成的偏差,水冷回路带走热量。因为杯体采用截获式测量,插入时会影响下游束流,因此需将位置限位与冷却状态纳入设备联锁。拓思结合束斑、热负荷和安装空间,匹配杯体、电流计、抑制电源及控制接口,再验证完整测量链。

客户价值

本方案的特点是把可伸缩测量、水冷和可维护的腔外计量结合起来:需要调束时插入杯体,测量结束后电动退出,为工作束路让出通道。水冷则为截获束流提供明确的散热路径。拓思围绕实际束斑和工况,把部件选型延伸到量程、抑制电源、冷却与联锁的匹配,因此客户获得的是可集成、可验证的测量接口,而不只是一个电流读数。重复定位、噪声和热负荷经验证后,可建立用于后续调束的共同参考。

常见问题 · 3 个问题

法拉第杯测到的是离子源电流还是目标端电流?

测到的是实际进入杯口并被收集的电荷电流,其含义取决于安装位置。若杯口没有完整接收束斑,还需考虑几何截取和边缘散射,不能直接当作整束总电流。

200 W型号能测量任何高能离子束吗?

不能。除总束功率外,还要检查局部功率密度、束斑、占空比和冷却条件。电子束能量范围也不能直接换算成所有离子工况的通用许可。

初次询价需要哪些信息?

先提供离子种类及荷态、能量、电流与占空比、束斑尺寸、安装位置及所需行程、真空与冷却条件。已有电流计的量程和接口也请一并说明。

你的设备也有类似需求?

提供现场照片、工况参数或项目要求,讨论适合的技术与工程支持。
